splitting the engine casing
Note the first 3 bolts already loosened (still in place on left side)
|
|
|

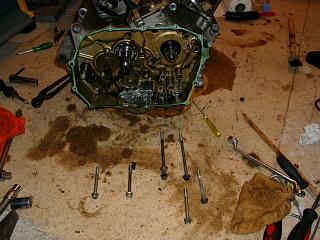

6 bolts loosened on right side
|
|

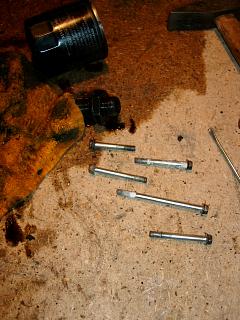

6 bolts removed
|
|

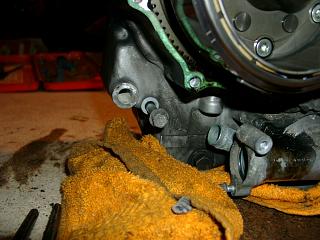

the small pipe from the oil pump may be removed. unscrew holding lid and
pull from rubber seal near the pump.
|
|
this piece secures the bearing of the main gear shaft.
|
|

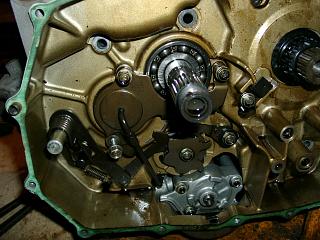

gear shift levers.
|
|

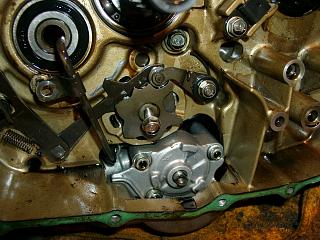

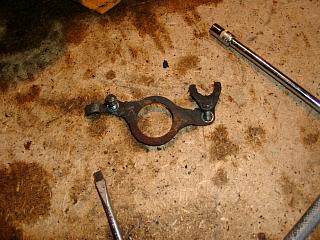

gear shift levers before removal
|
|

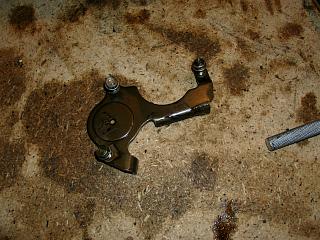

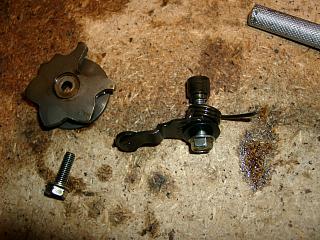

gear shift levers stored away
|
|
the shaft for the gear lever may be pulled out. In my case it needed a little
help with a hammer because of corrosion. Seal on the right side of the engine
should be checked carefully.
|
|

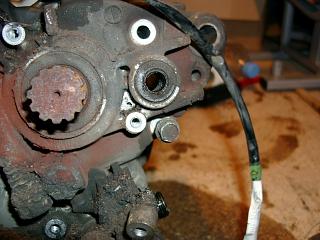

Seal on the right side of the engine

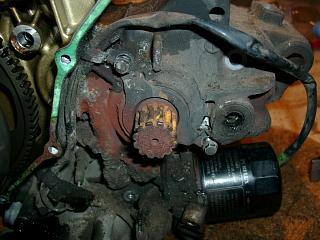

after removing gearshift lever.

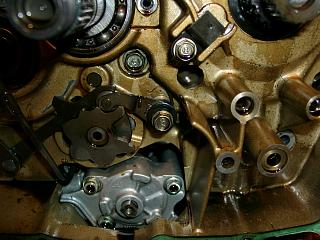

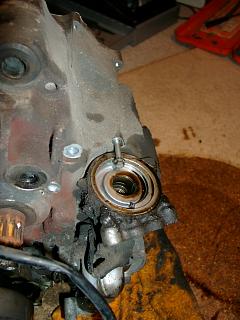

Plate which secures aft gear shaft bearing will be removed next.
|
|

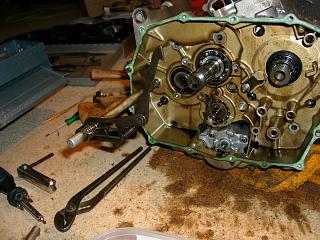

Plate which secures aft gear shaft bearing removed
|
|
one more bolt to go
|
|
and one more ...
|
|
and one more hidden behind the oil filter
|
|

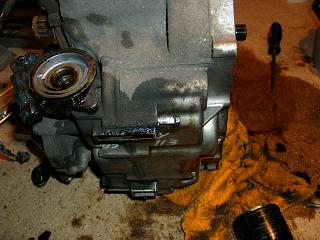

and one more underneath the engine from the right side
|
|

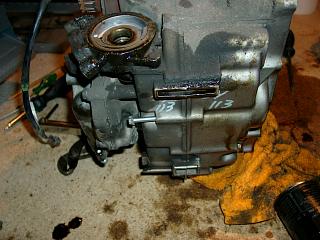

and two more underneath the engine from the left side
|
|
and five smaller bolts, here is the sequence showing the different length.
|
|
and one more in the middle of the engine (right side)
|
|

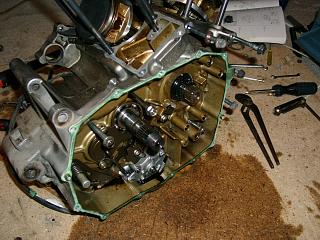

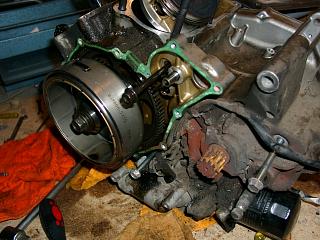

finally, it is possible to spli the engine. There are 3 circumferetial positions
which allow to insert a screw driver to help splitting the casing
|
|

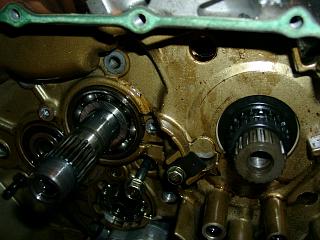

the gear shaft still in place
|
|

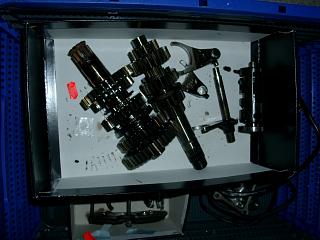

all components of the gearbox may simply pulled out together. Try to avoid to
let everything fall into pieces here.
|
