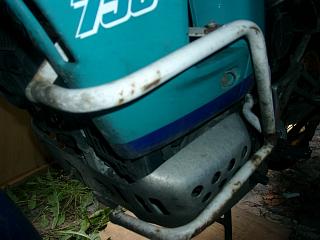

removing the crash barsAfter the bike lived outdoors for 10 years the bolts of the FiveStars crashbars suffered corosion. Unfortunately one bolt holding the crash bar as well as the radiator of gthe cooling system broke, leaving a piece in the hole of the frame of the motorcycle. This will cause a major effort to remove the piece.The crash bar has caused me headaches before because it broke off the mounts for the engine protectors due to vibration only after a few thousend miles after being mounted.
| |
|

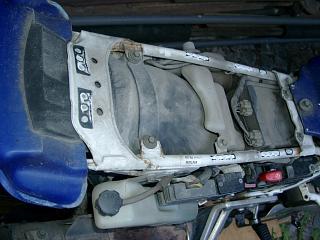

side covers removed.
| |
|

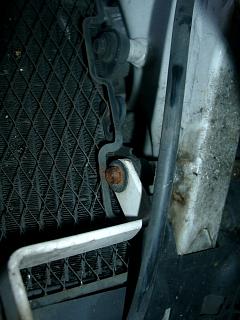

desaster strikesThis bolt holts the radiator as well as the crash bar. It broke while trying to un-screw. part of the bolt staying in the frame. I will try to replace all bolts by non-corrosive steel bolts.
| |
|

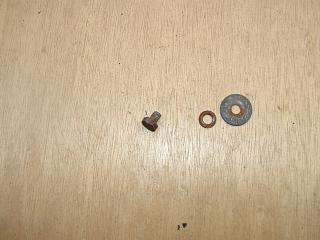

the broken bolt
| |
|

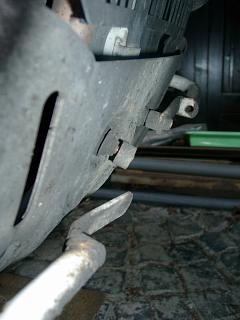

crash bar, right side after loosening the nut. Obviously a lot of tension in the
crash bar.
| |
|

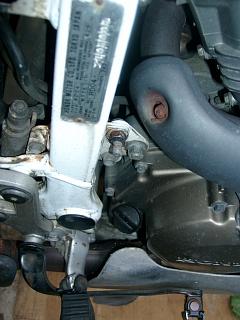

the extended length bolt (left of engine mount) is the mounting point of the rightside crash bar
| |
|
left side crash bar came off without trouble
|
