removing the engine
there is a binder connectin cables and tubes right of the airbox.
|
|
|

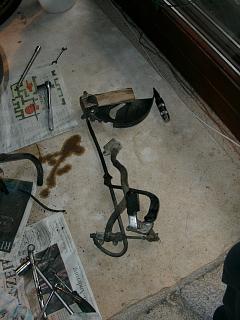

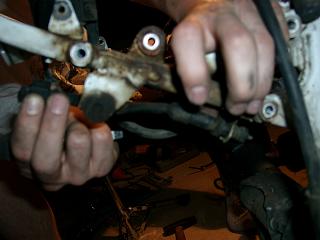

The rear brake comes off in one piece. no need to drain it. The part holding
the footrest and the prake pedal sticks in a hole in the frame. Once the rear
suspension is taken away you can drive it out this hole from the inner side
using hammer and sting
|
|

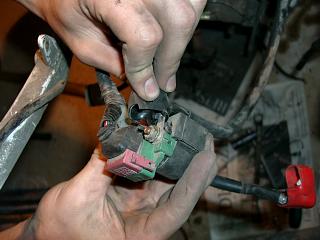

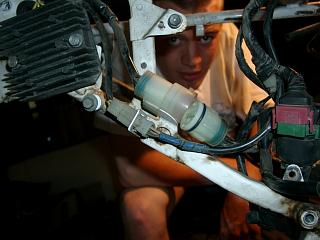

disconnect the regulator (hope this is how it is called) and take it away
|
|

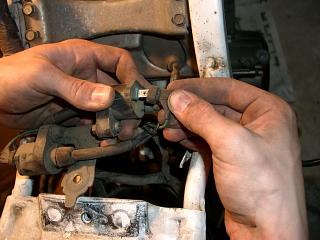

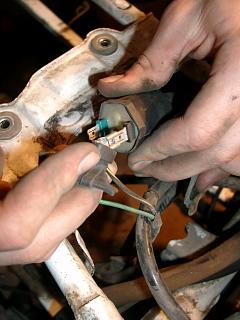

here goes the brake light switch
|
|

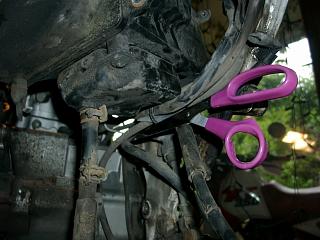

it is possible to simply rip the cable binders off the frame. they can be
fitted again later onto those tiny white knobs
|
|
cable colors match at the ignition system (rear cylinder in this case)
|
|

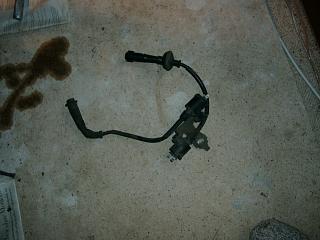

ignition system will be removed together with spark plugs
|
|

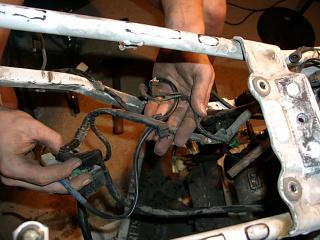

the opposite end links to the cable tree
|
|

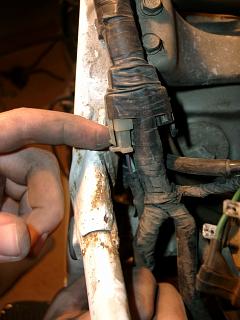

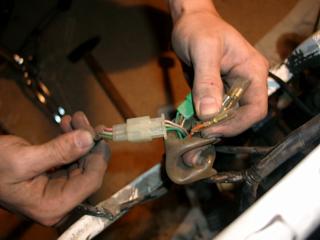

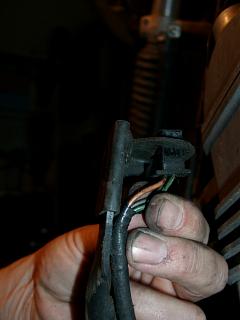

one more connector. what was this again?
|
|

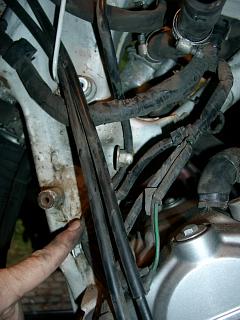

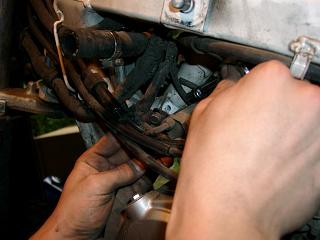

wiring near the fuse box and towards the starter
|
|
removing the starter cable
|
|

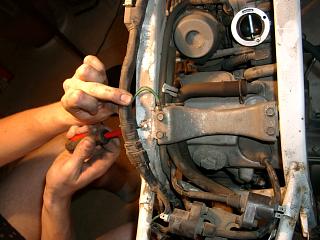

the starter cable passes through here
|
|

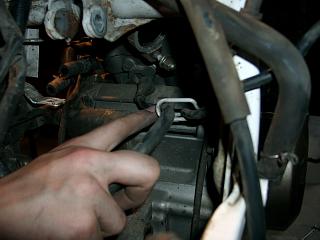

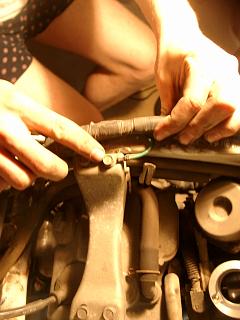

a grounding wire holds the cable tree near this bridge
|
|
the grounding cable will go away and the bridge as well
|
|
ignition system
|
|
ignition system at forward cylinder
|
|

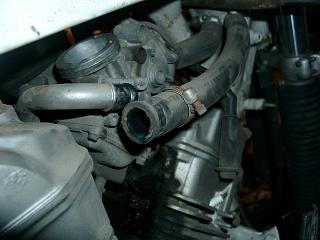

tubes towards the thermostat
|
|

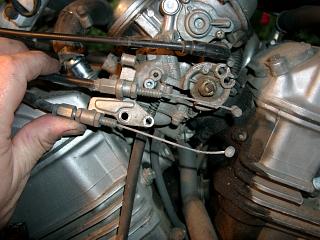

The cables for the gas handle maybe be disconnected after loosening the plate.
The adjustment should stay as is!
|
|

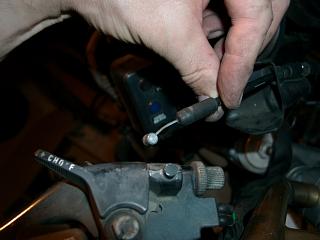

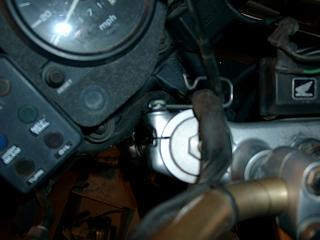

the choke cable is diconnected at the top. It can stay with the carburators
|
|

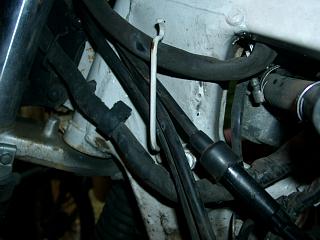

this is where the choke cable goes
|
|
and through here as well
|
|

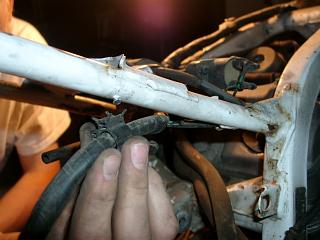

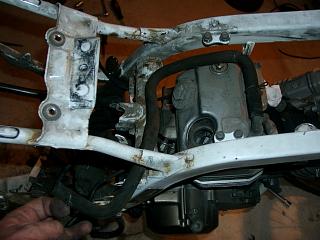

tube between coolant expansion bottle and right side radiator
|
|
here it is again marked with three yellow tags
|
|

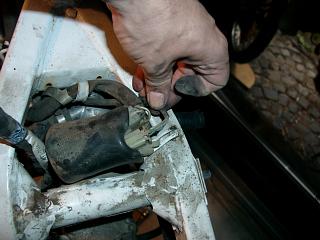

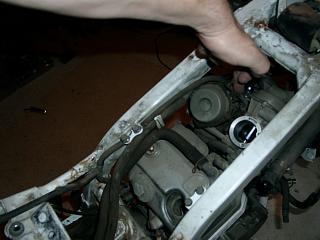

carburators may be disconnected after loosening the rings on the rubber tubes.
Simply turn clockwise and pull.
|
|

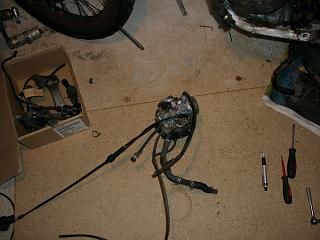

carburators may stay attached to each other.
|
|
ignition cable
|
|

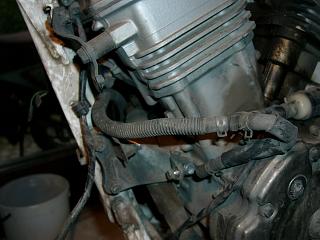

generator cable
|
|
the opposite end of the generator cable
|
|

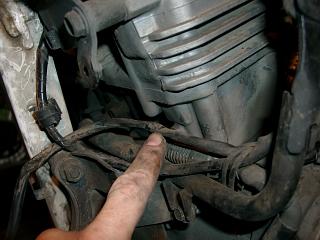

here is where the generator cable passes
|
|
and here ....
|
|

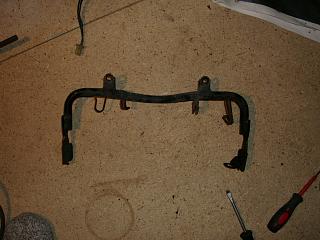

the support for the side covers is taken off next
|
|
this support used to be in front of the cylinder
|
|

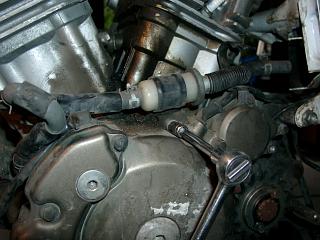

take away the gas filter
|
|

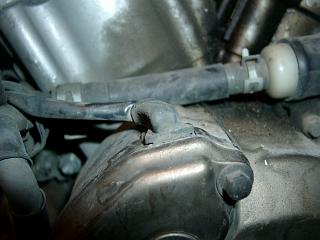

there is still this ventilation tube
|
|
the next piece to go is the engine support in the front
|
|

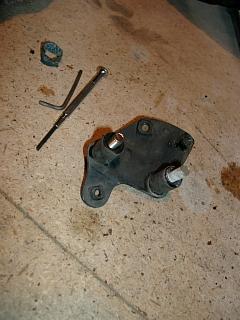

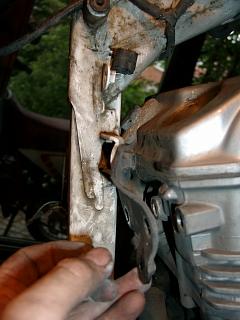

engine support
|
|

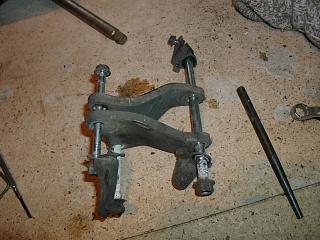

upper engine support
|
|

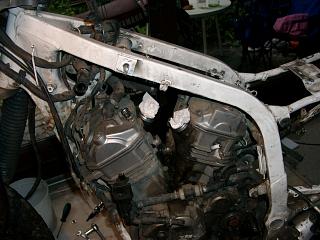

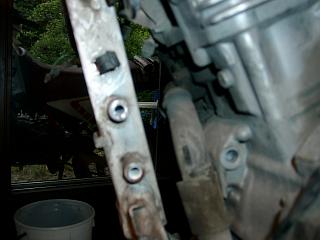

upper engine support removed, now two bolts at the bottom and at the rear of the
engine and the engine can be moved outward with a 90 degrees turn to the left.
Instead of taking a photo I took a beer. That engine is heavy! Enough for today.
|
