remove cockpit

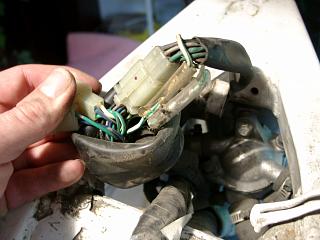

the remaining connectors from the main cable tree
|
|
|

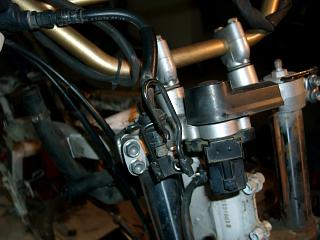

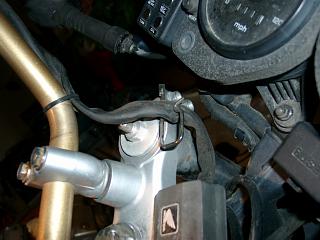

position of the cable to the clutch grip
|
|

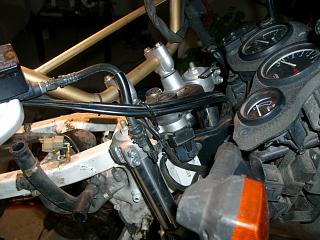

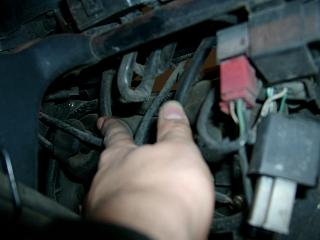

position of cables between gas hadle and carbs
|
|
two cable which lead towards the cockpit (from right handle bar and from key lock)
|
|
position of the cable to the clutch grip
|
|

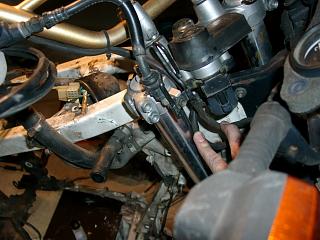

the same cables near the fork
|
|

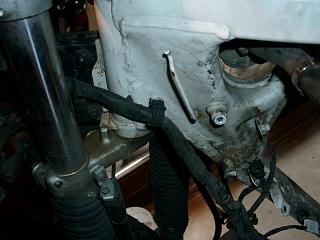

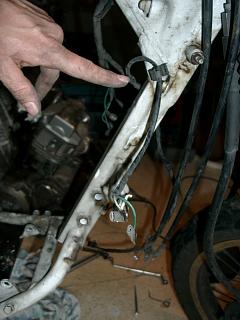

position of the cable for the horn
|
|
cable from thermostat
|
|

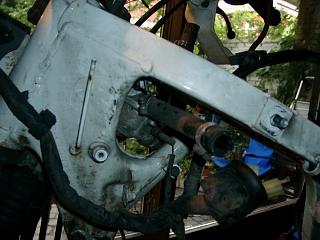

position of the main cable tree
|
|

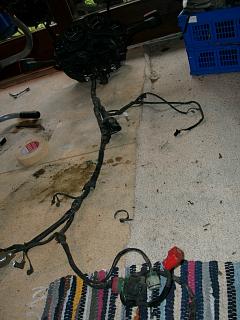

the cockpit came off together with the cables
|
|
the idea is to remove the front brake system as a whole for the moment.
Everything stays connected to the handle bar. There will be no air in the

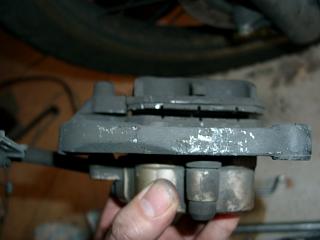

brake pipes. Well, it worked. The brake saddle appear to not move freely.
|
|

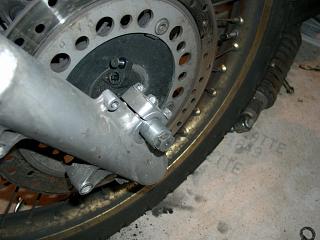

ready to remove the front axle
|
|

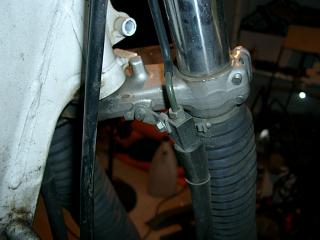

clamps for the brake piping
|
|
two more clamps on each side of the back of the fork
|
|
remove right fork leg first, the remove brake system
|
|

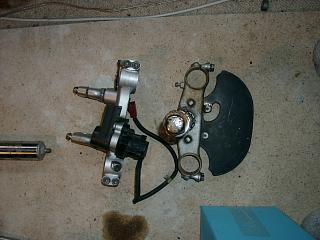

remove fork legs, fork bars and bearing
|
